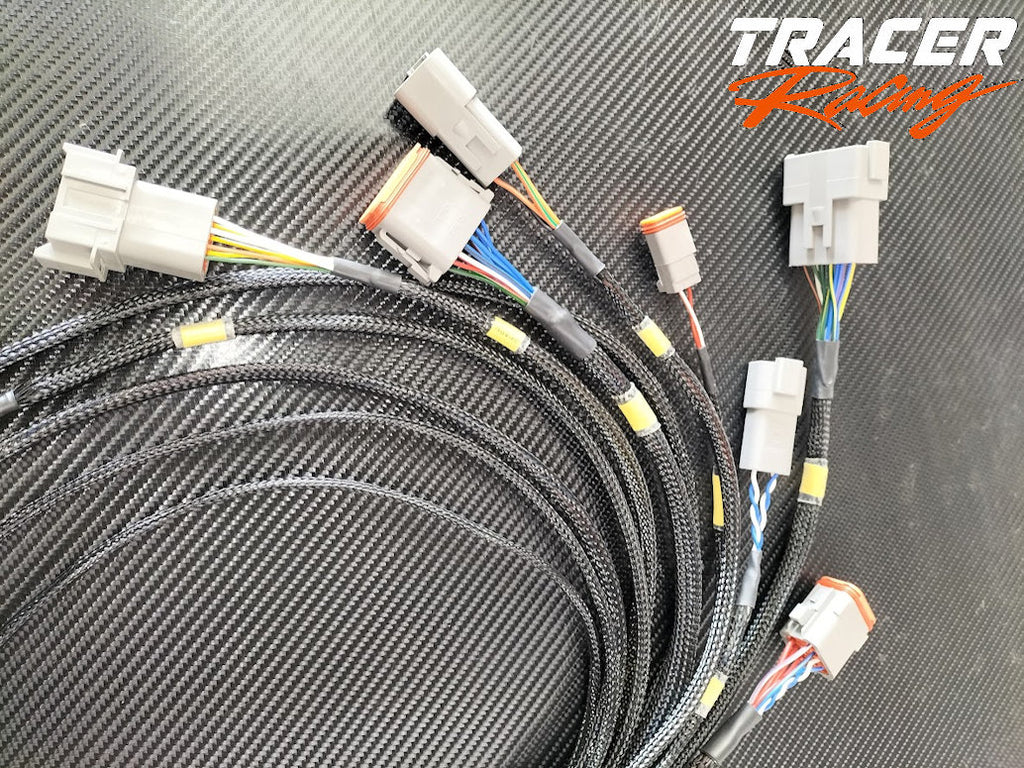

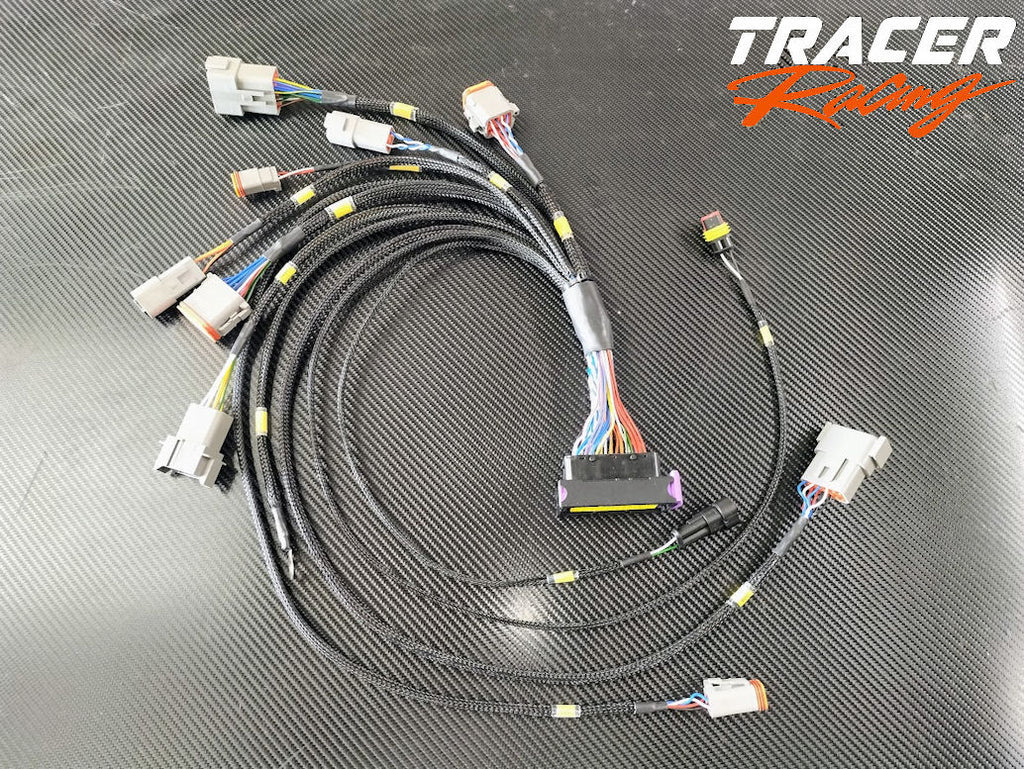

Generic ECUmaster PMU-16 wiring loom

Ideally suited to typical hot hatch / saloon track day, race (to MSA/MSUK spec) or drift cars

Length is not a concern as you simply join your existing or
DIY wiring to the relevant connector of this PDM loom.

This loom plugs into the PDM and is then separated into
sections, e.g. front, rear, ECU, dash, etc, to make it easy for you to go from
point A on this loom to point B on your car and streamline the process of
fitting a PDM.

We may add other PDM’s to our lineup, however even when
using other ECU’s or dashes we firmly believe the ECUmaster PDM’s are by far
the best in their price bracket given the higher number of higher amp outputs
allowing more flexibility over other ’16’ channel PDM’s which come up short due
to lower amp outputs restricting what you can run from them.

Features wiring for:

Sidelights and taillights

Low beam headlights

High beam headlights

Brake lights

Left and right indicators

Rain light / rear fog light

Intermittent, low speed and high speed front wipers

2x Fuel pumps

2x Rad fans

CAN keypad

Brake switch

2x separate CAN BUS

Digi dash consisting of power supply and CAN – Will join
directly to our ADU dash looms or can be used with alternative brands / types
of dash display.

Fuel level

ECU connections consisting of all typical connections/power supplies for a modern ECU and typical engine components like the ECU itself, ignition coils, fuel injectors, wideband lambda, boost and/or VVT solenoids, CAN BUS. Can be used with most brands / types of ECU.

Expansion connector with spare +12v outputs, spare analogue inputs and sensor supply and ground

PMU-24 version available by request.

UK made automotive grade wire with braided sleeve and adhesive heat shrink

Heat shrink labels with adhesive clear heat shrink covering

Designed and produced in the UK

Bench tested and supplied with supporting paperwork
