ECUmaster ADU 7" Partial Bundle; ADU 7, USB, Loom
ECUmaster ADU 7" Partial Bundle; ADU 7, USB, Loom
ADU 7" PARTIAL BUNDLE INCLUDES:
ECUmaster ADU 7" dash,

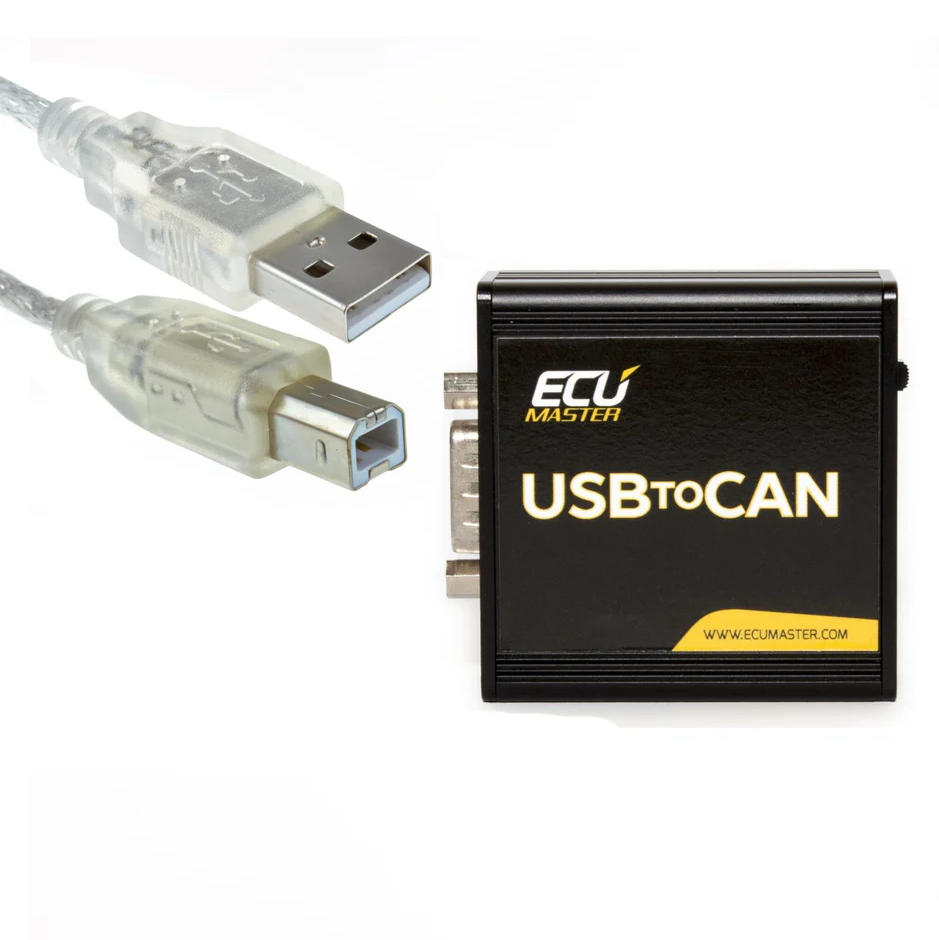

USB module with comms cable for programming,

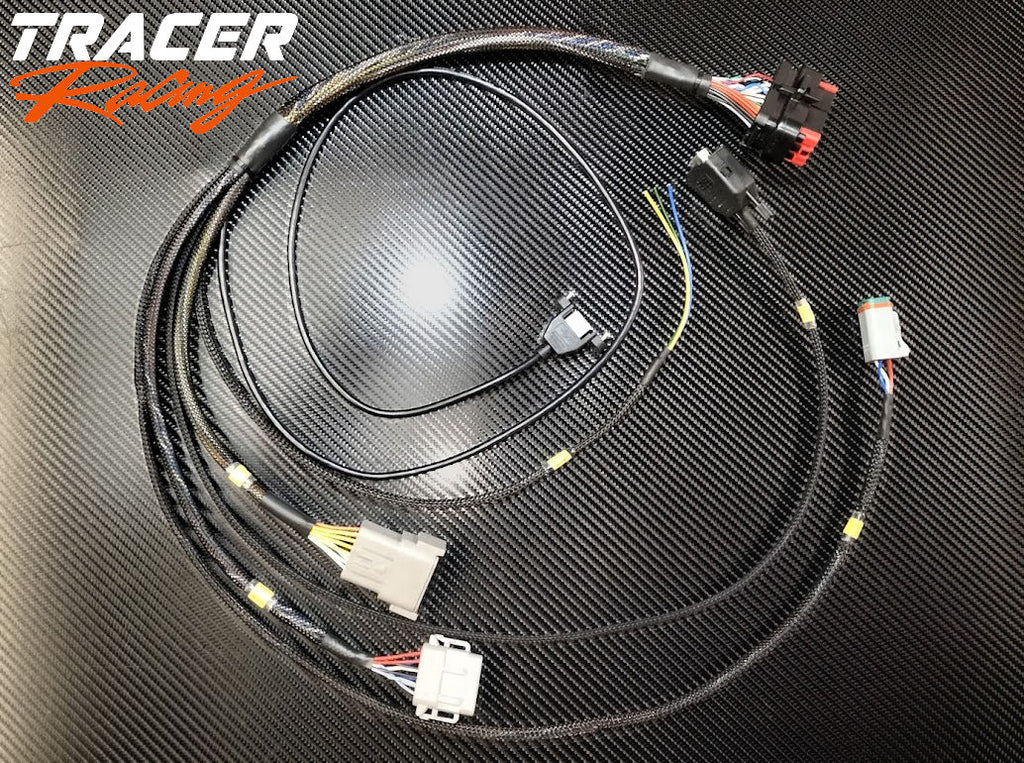

Tracer Racing ADU generic wiring loom.
SAVE OVER £120
As ECUmaster products are price fixed, so as not to devalue the brand, this saving is deducted from the wiring loom portion of the bundle.
For component packages, at the moment we ask you please allow 1-3 days for postage while we sort out our new stock process/system and we hope the discount offered makes this small delay worthwhile.
UK Postage is to Standard Mainland UK addresses only and will be Royal Mail 24.

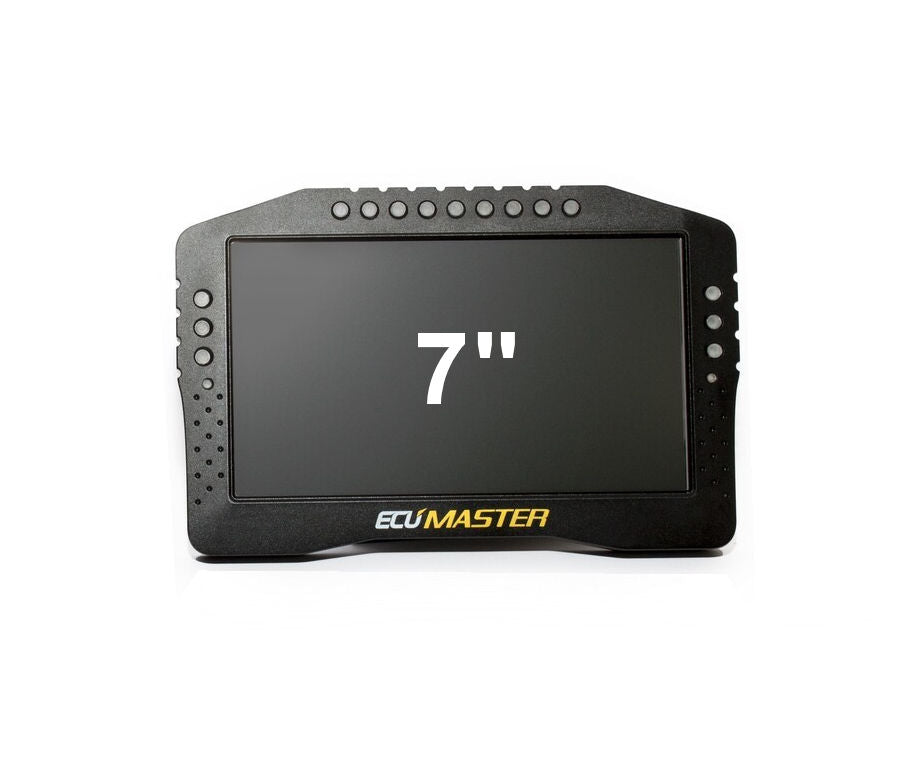

ECUmaster's Advanced Display Unit 7” version features a high resolution, high visibility anti-glare screens, guaranteeing perfect visibility in all lighting conditions.
The ADU comes with multiple pre-configured pages, which can be customized by the end user.
Pages may be changed manually or automatically (based on defined conditions). Each channel displayed on a page (gauges, icons, texts, etc.) can be easily modified using user-friendly Windows based software.
Their comprehensive overlay system facilitates a multiple page display for important data (e.g. low oil pressure, best lap, etc.) independent of the actual page displayed.
Their goal was to create a fully customizable, feature-rich, quality solution for competitive drivers and they consulted professional drivers and race engineers, designing the ADU to exceed their requirements.

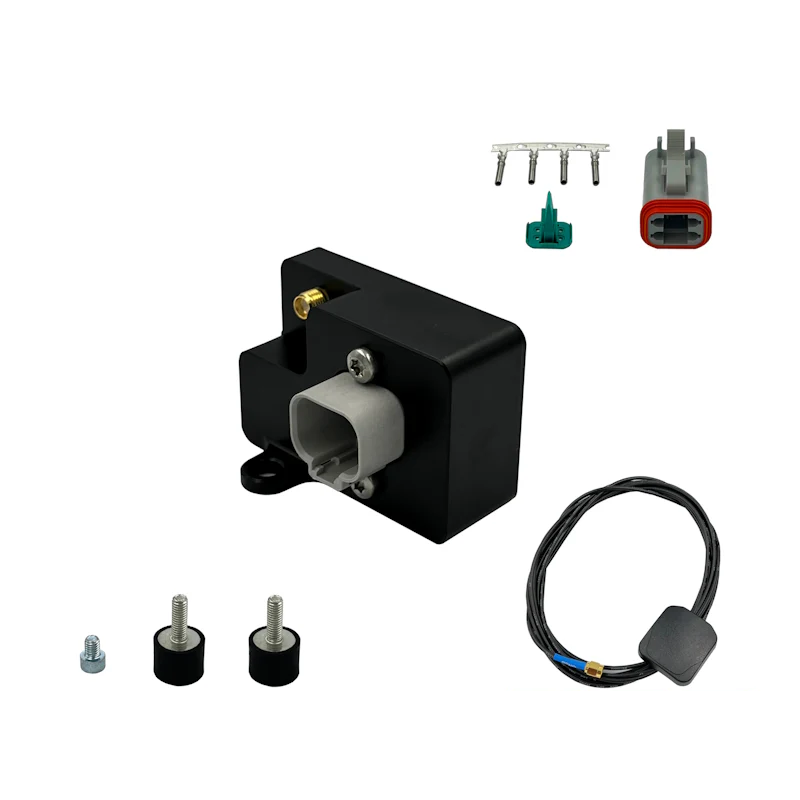

To communicate with the ADU you need a CAN bus interface, such as ECUmaster's USB CAN module. For lap timing you will need ECUmaster's GPS CAN module.
| Features | |
| Lap timer: | Lap timer with memory, predictive timing, triggered by a beacon or GPS |
| Customization: | 48 available pages, user defined content, custom graphics allowed |
| Functions: | User configurable maths and logic |
| Overlays: | Yes user defined |
| CAN stream: | User defined, up to 48 input messages, predefined streams for popular ECUs |
| General specification | |
| Operating voltage: | 6-22V, immunity to transients according to ISO 7637, with reverse polarity protection |
| CPU: | 32 bits, automotive, 90MIPS |
| Temperature range: | -30°C to 80°C |
| Enclosure: | Anodized aluminium, CNC machined, IP61 |

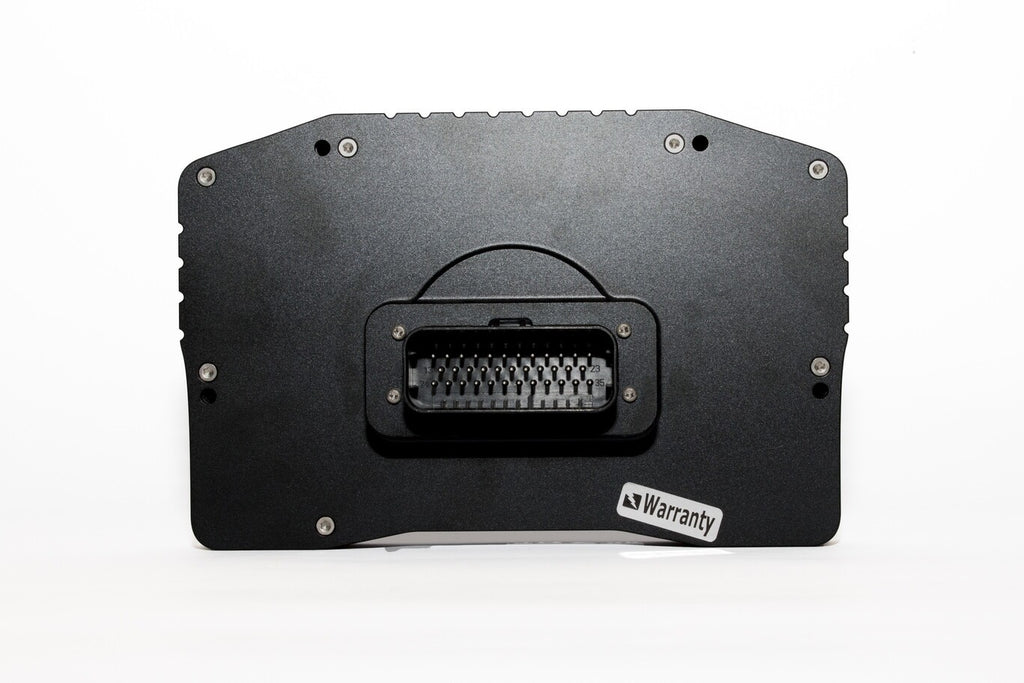

| Connection: | Automotive 36-way AMP |
| ADU 5": | Antiglare TFT, 800x480, active area 108x64.8 mm, luminance 600 cd/m2 |
| ADU 7": | Antiglare TFT, 800x480, active area 154.08x85.92 mm, |
| Alarms: | 15 x ultrabright RGB LEDs used for alarms and shift lights |
| Communication | |
| CAN: | 2x CAN 2.0B (250, 500, 1000 kbps) independent |
| Serial: | RS232 (Rx, Tx) |
| USB: | Yes, for data logging |
| Inputs | |
| Analog: | 8 analogue inputs, 10 bits, 500Hz, software selectable pullups/pulldowns |
| Digital | 8 inputs with user defined sensitivity |
| Outputs | |
| Aux outputs | 2 x protected 3A low side outputs |
| Logging | |
| Memory: | USB Flash Memory |
| Rate: | 500Hz |
| Clock | Yes |
| Others | |
| Accelerometer: | 3 axis gyro and 3 axis acceleration |
| Light sensor: | Yes for auto brightness functionality |
| Temperature sensor: | Built in to trace device internal temperature |
| Real time clock: | yes with internal power supply |
